SpringBoot操作数据库

留言

6.MybatisPlus快速上手.pptx

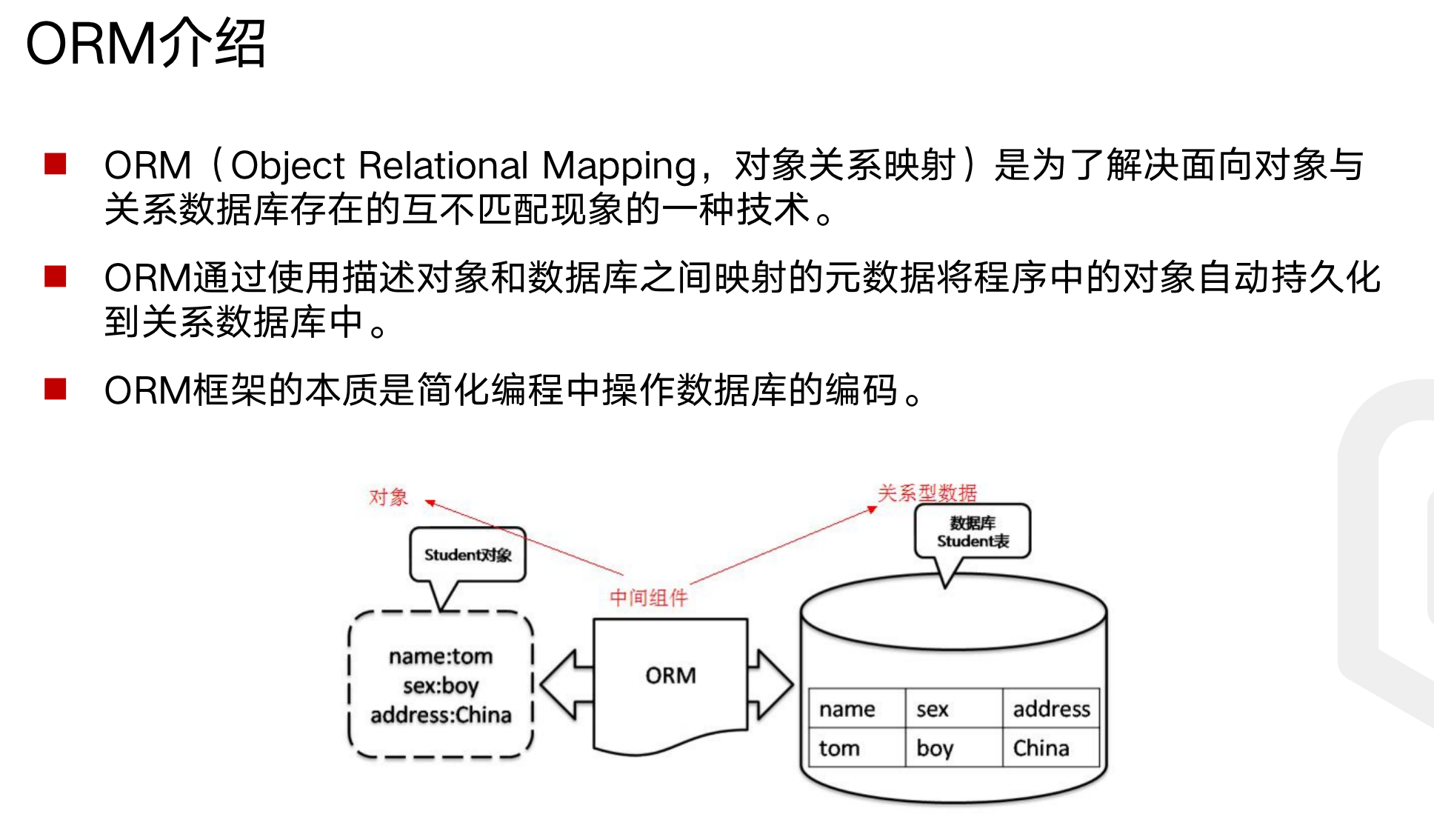

ORM介绍



MyBatis-Plus介绍


MyBatis图标是红色的，MyBatis-Plus的图标是蓝色的


添加依赖：

pom.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<!--  MyBatisPlus依赖  -->
<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.4.2</version>
</dependency>
<!-- mysql驱动依赖  -->
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>5.1.47</version>
</dependency>
<!--    数据连接池 druid。使用连接池，可以一次性申请多个连接    -->
<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>druid-spring-boot-starter</artifactId>
    <version>1.1.20</version>
</dependency>

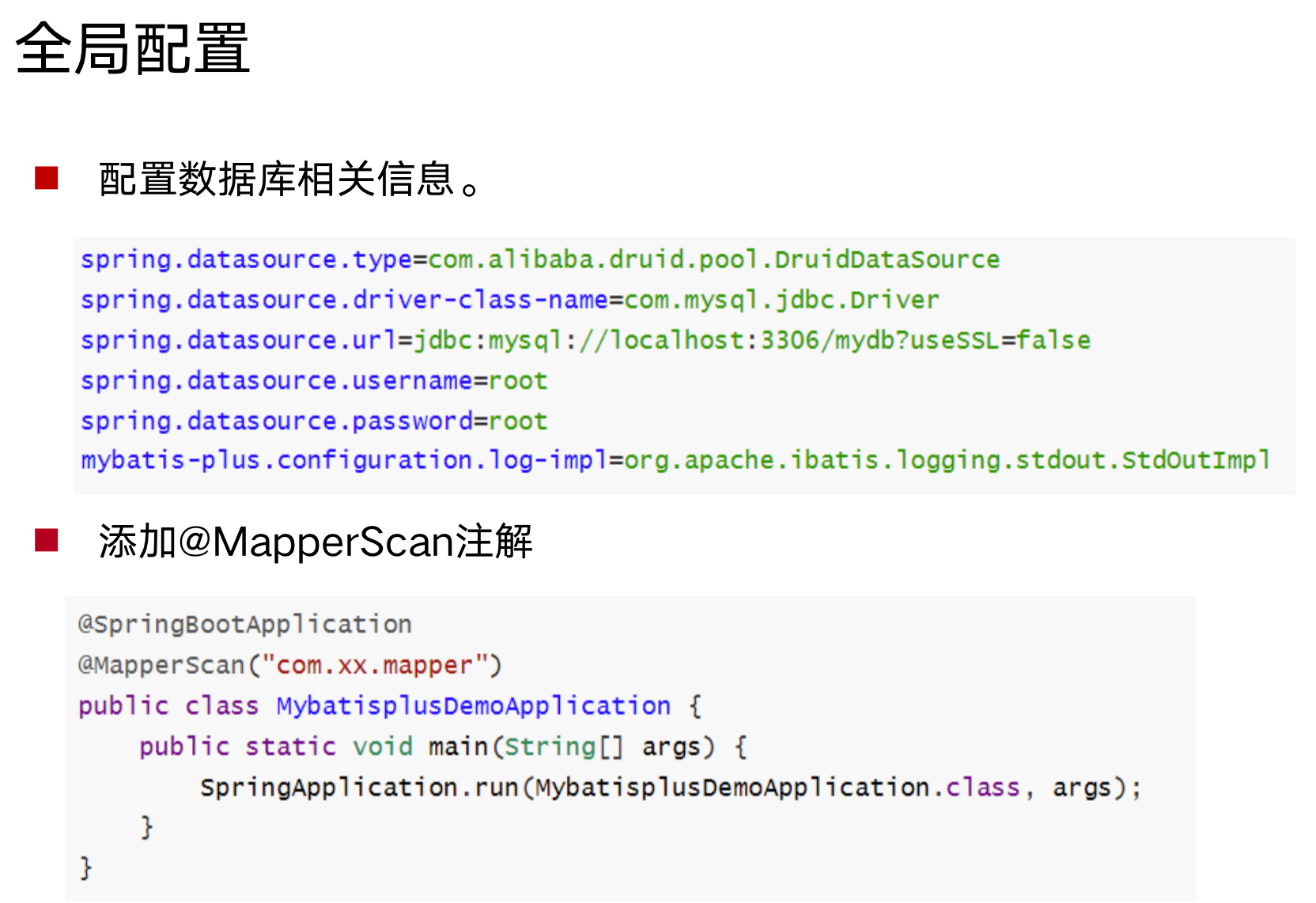

做一些全局配置：

src/main/resources/application.properties:

1
2
3
4
5
6
7
8
9
# 连接池配置
spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
spring.datasource.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/mydb?useSSL=false
spring.datasource.username=root
spring.datasource.password=12345678
# 指定日志格式
mybatis-plus.configuration.log-impl=org.apache.ibatis.logging.stdout.StdOutImpl
server.port=8088

新建一个mapper目录，数据库相关的操作都放到下面

添加@MapperScan注解，映射数据库。告诉sb扫描什么包

src/main/java/com/example/mpdemo/MpdemoApplication.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
package com.example.mpdemo;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
@MapperScan("com.example.mpdemo.mapper")
public class MpdemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(MpdemoApplication.class, args);
    }

}

MyBatis-Plus CRUD操作

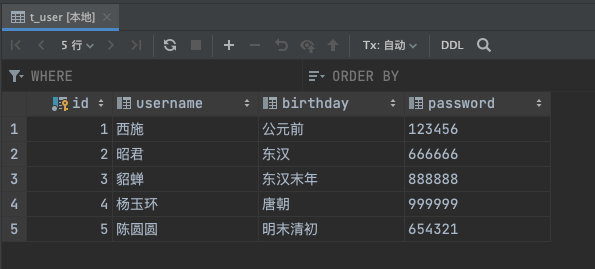

新建一张t_user表：

1
2
3
4
5
6
7
8
9
10
11
-- auto-generated definition
create table t_user
(
    id       int auto_increment
        primary key,
    username varchar(255) null,
    birthday varchar(255) null,
    password varchar(255) null,
    constraint user_id_uindex
        unique (id)
);

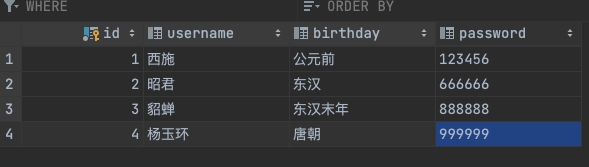

并写入几条数据


创建一个User类，

src/main/java/com/example/mpdemo/entity/User.java:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
package com.example.mpdemo.entity;

import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;

import java.util.List;

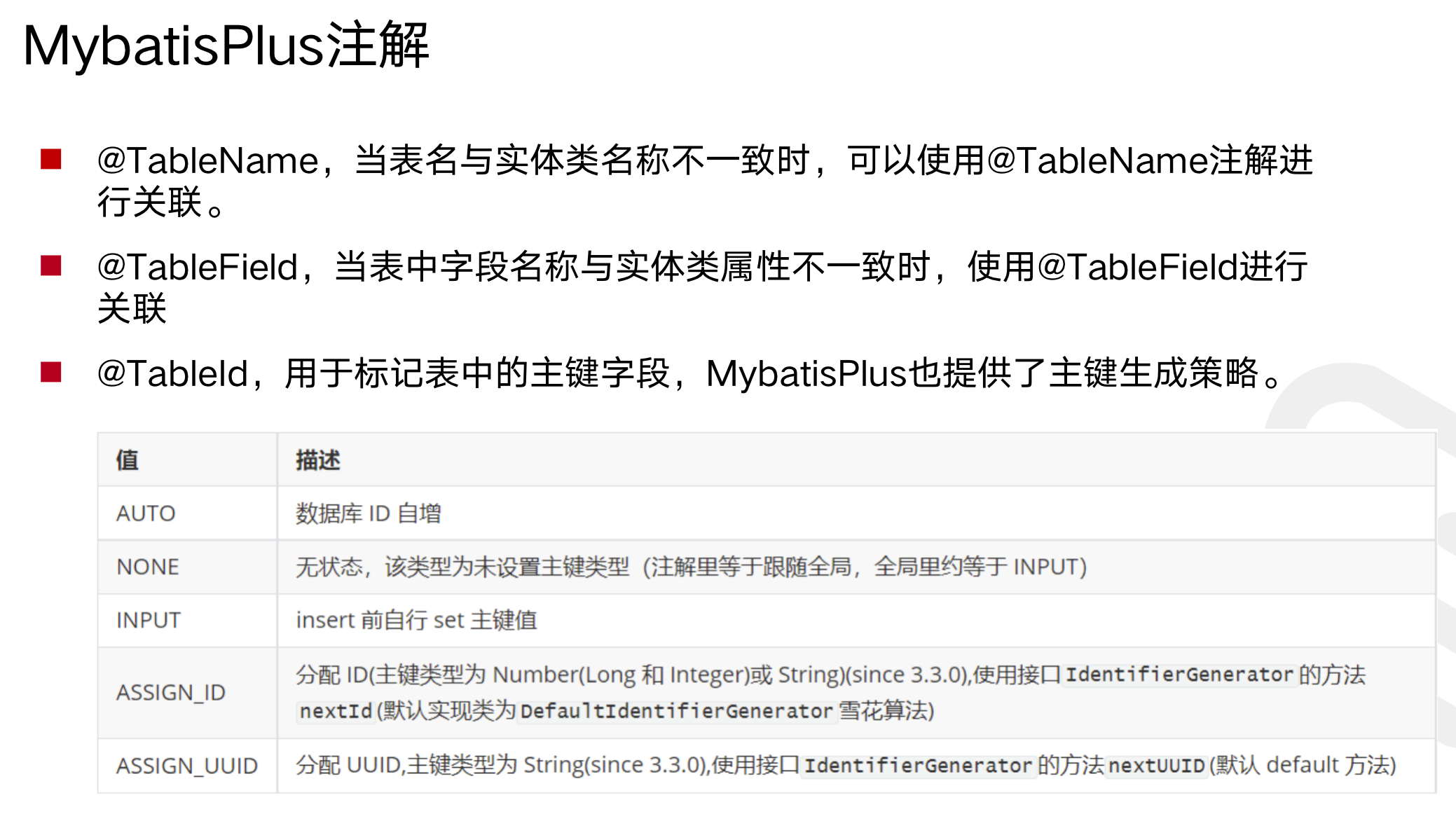

@TableName("t_user")
public class User {
    @TableId(type = IdType.AUTO)
    private int id;
    private String username;
    private String password;
    private String birthday;

    //  描述用户的所有订单
    @TableField(exist = false)
    private List<Order> orders;

//    alt + insert

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getBirthday() {
        return birthday;
    }

    public void setBirthday(String birthday) {
        this.birthday = birthday;
    }

    public List<Order> getOrders() {
        return orders;
    }

    public void setOrders(List<Order> orders) {
        this.orders = orders;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", username='" + username + '\'' +
                ", password='" + password + '\'' +
                ", birthday='" + birthday + '\'' +
                ", orders=" + orders +
                '}';
    }
}

src/main/java/com/example/mpdemo/mapper/UserMapper.java:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
package com.example.mpdemo.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.example.mpdemo.entity.User;
import org.apache.ibatis.annotations.*;

import java.util.List;

// 该文件的命名，一般以数据库操作的表+Mapper结尾

//用于操作用户表,MyBaits会根据Mapper注解，动态实现UserMapper接口（实现类），动态代理技术
//Spring会自动创建UserMapper接口实现类对应的实例
@Mapper
public interface UserMapper extends BaseMapper<User> {

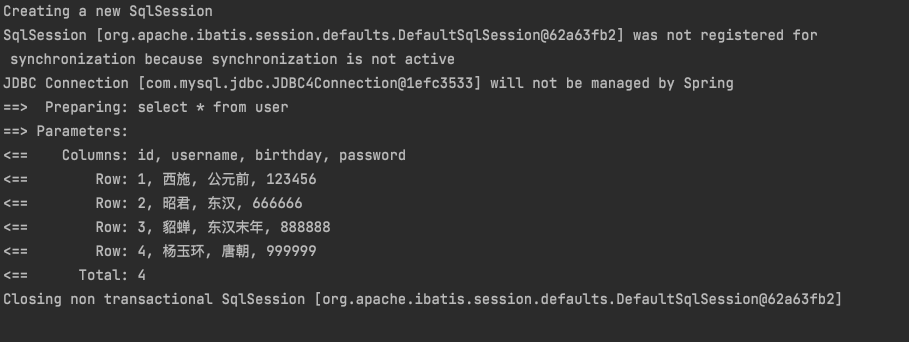

    // 查询所有用户
    @Select("select * from user")
    public List<User> findShuang();



//   查询用户，根据用户id查询信息   select * from user where id =
    @Select("select * from t_user where id = #{id}")
    User selectById(int id);

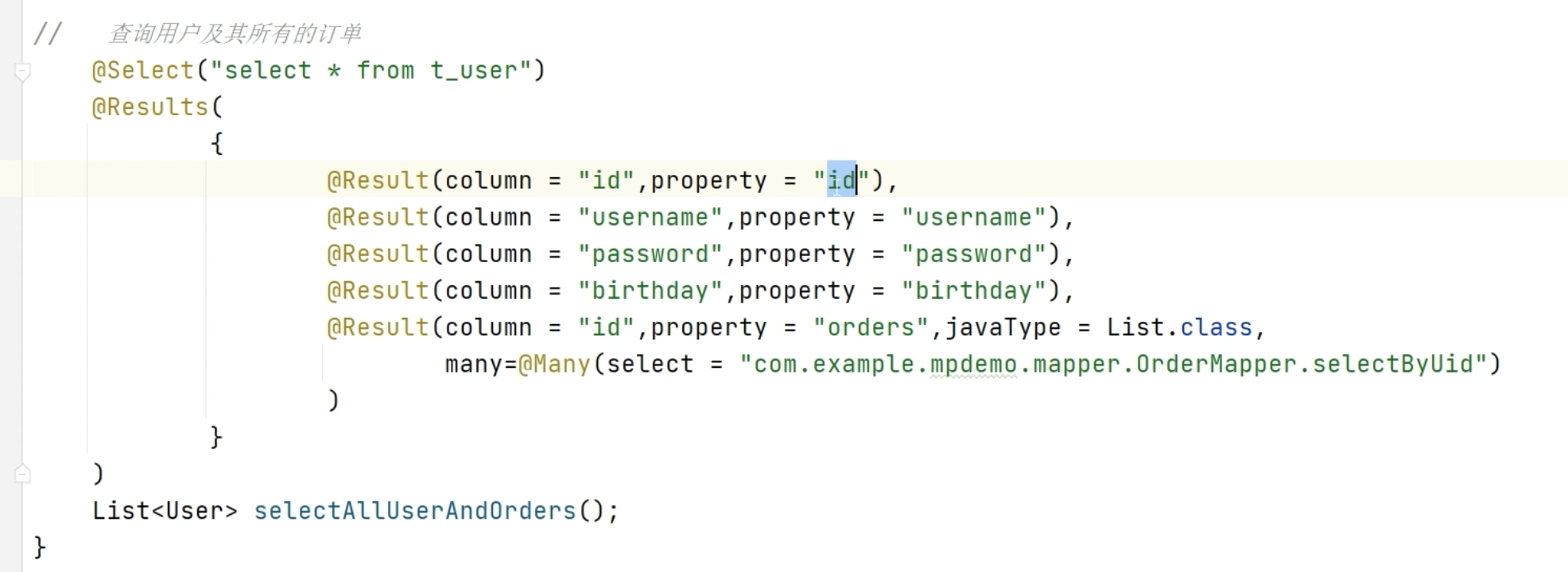

//   查询用户及其所有的订单
    @Select("select * from t_user")
    @Results(
            {
                    @Result(column = "id",property = "id"),
                    @Result(column = "username",property = "username"),
                    @Result(column = "password",property = "password"),
                    @Result(column = "birthday",property = "birthday"),
                    @Result(column = "id",property = "orders",javaType = List.class,
                            many=@Many(select = "com.example.mpdemo.mapper.OrderMapper.selectByUid")
                    )
            }
    )
    List<User> selectAllUserAndOrders();
}

src/main/java/com/example/mpdemo/controller/UserContoller.java:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
package com.example.mpdemo.controller;

import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.baomidou.mybatisplus.core.metadata.IPage;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.example.mpdemo.entity.User;
import com.example.mpdemo.mapper.UserMapper;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

@RestController
@CrossOrigin
public class UserContoller {

    @Autowired
    UserMapper userMapper;

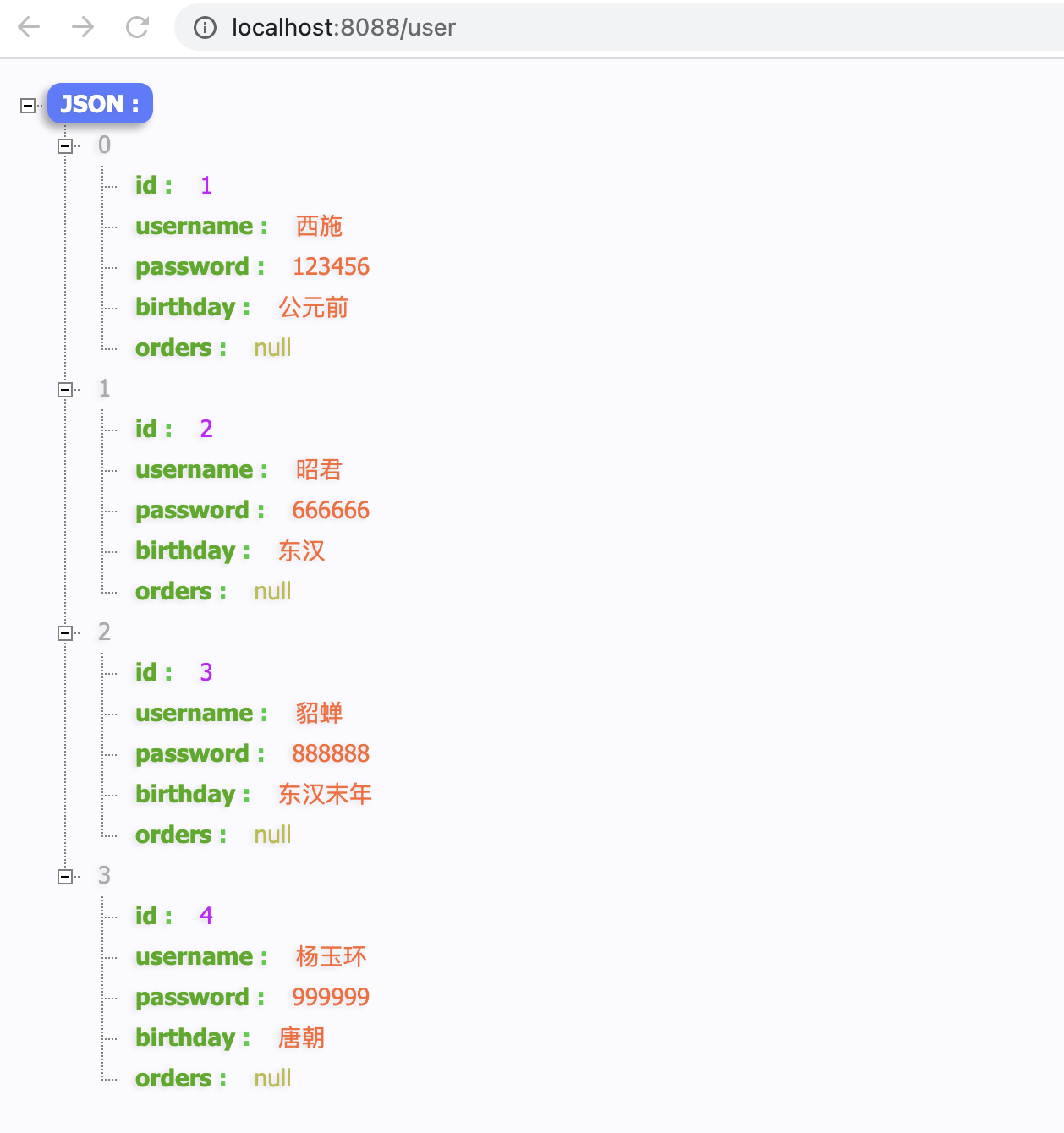

    @GetMapping("/user")
    public List<User> findShuang(){
        return userMapper.findShuang();
    }

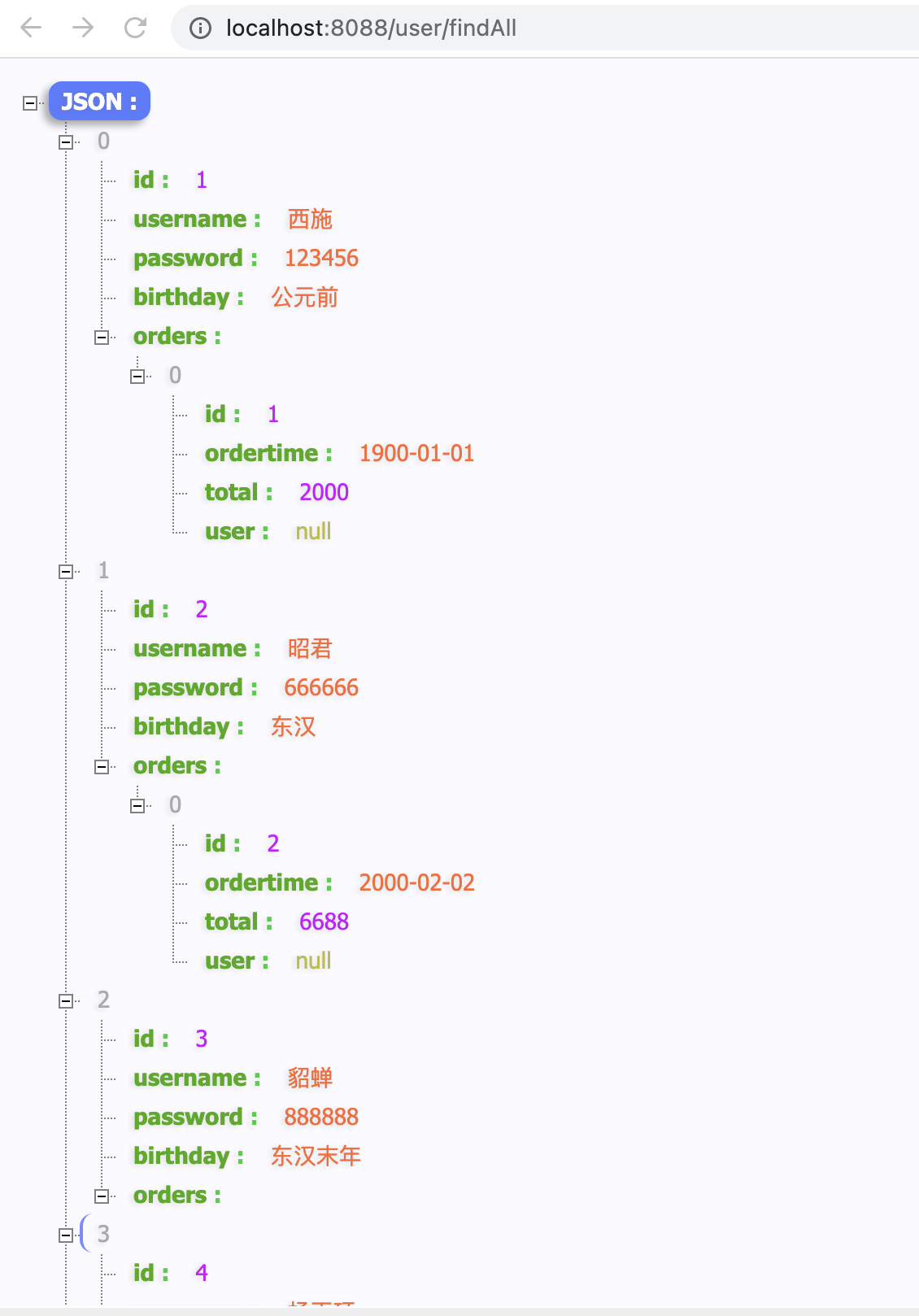

    @GetMapping("/user/findAll")
    public List<User> find(){
        return userMapper.selectAllUserAndOrders();
    }

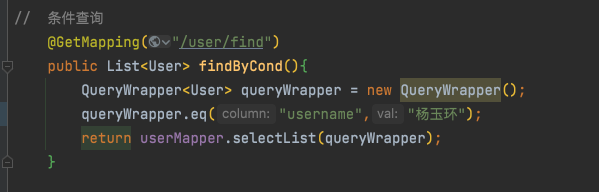

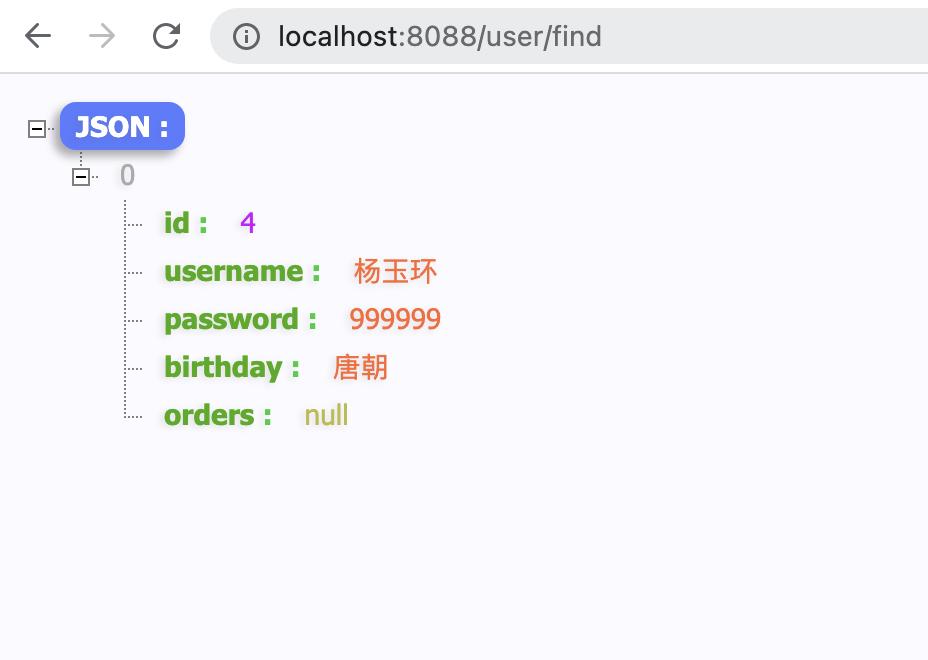

//  条件查询
    @GetMapping("/user/find")
    public List<User> findByCond(){
        QueryWrapper<User> queryWrapper = new QueryWrapper();
        queryWrapper.eq("username","杨玉环");
        return userMapper.selectList(queryWrapper);
    }

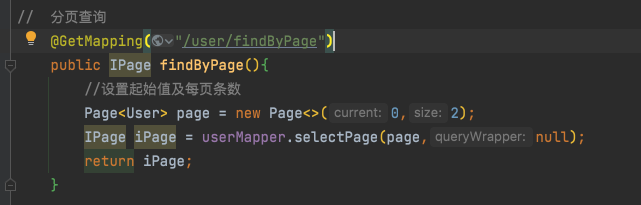

//  分页查询
    @GetMapping("/user/findByPage")
    public IPage findByPage(){
        //设置起始值及每页条数
        Page<User> page = new Page<>(0,2);
        IPage iPage = userMapper.selectPage(page,null);
        return iPage;
    }

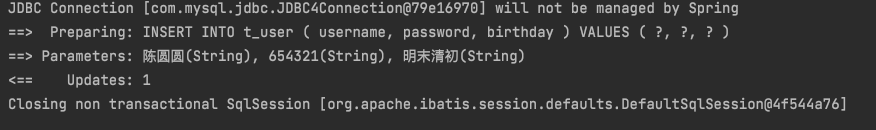

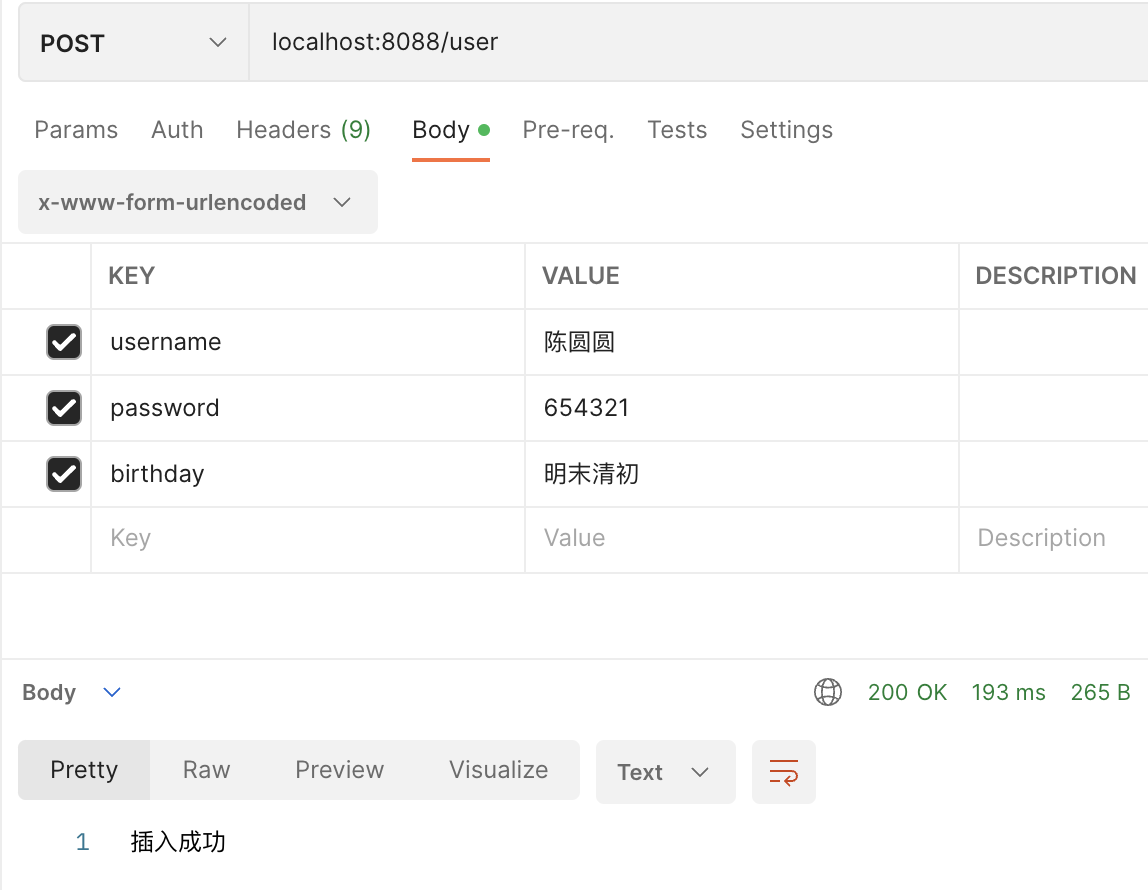

//  插入数据
    @PostMapping("/user")
    public String save(User user){
        int r= userMapper.insert(user);
        if(r > 0){
            return "插入成功";
        }else{
            return "插入失败";
        }
    }
}



MyBatis-Plus文档

mybatis-plus

mybatis-plus-doc


多表查询及分页查询


7.多表查询及分页查询.pptx

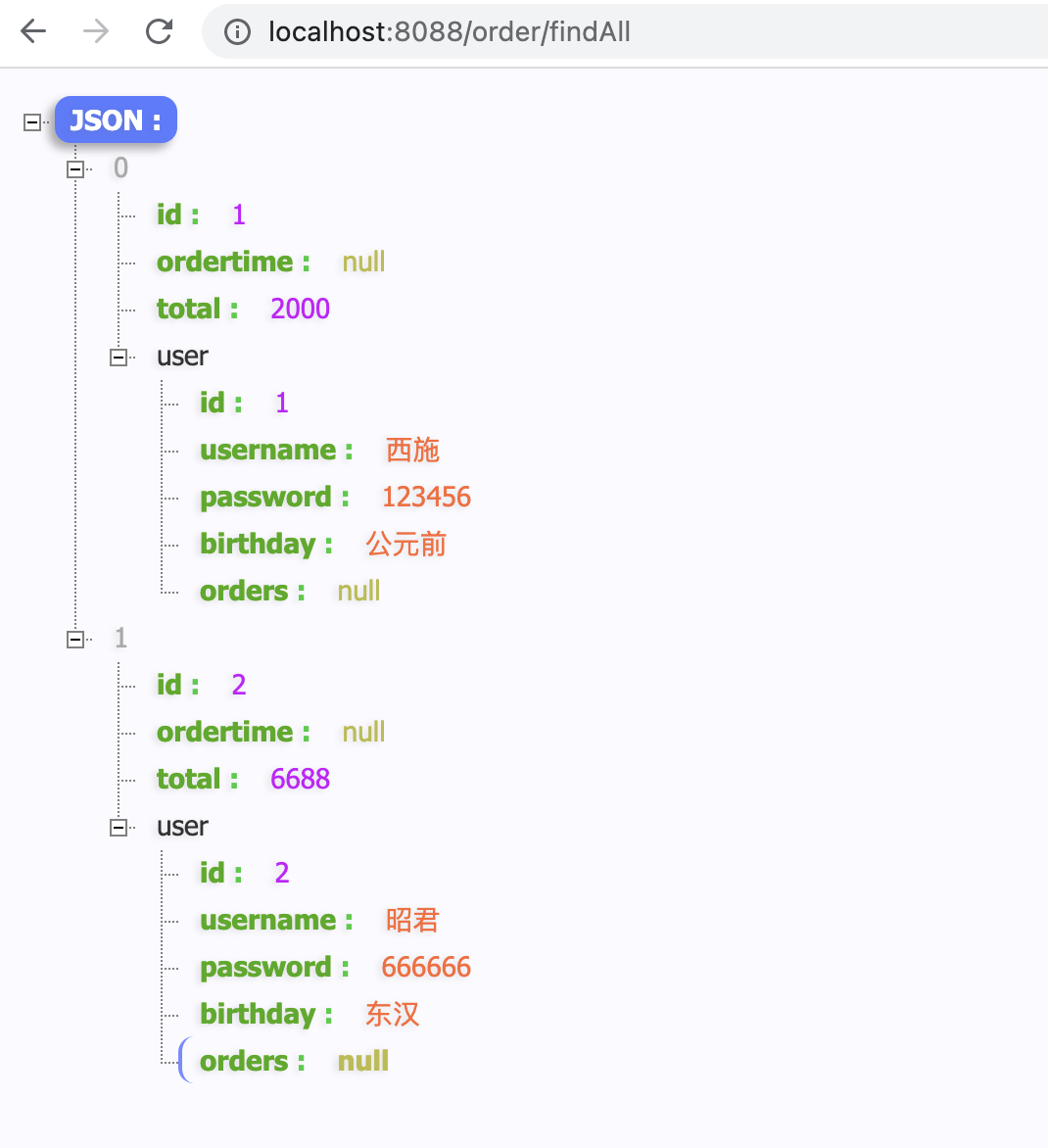

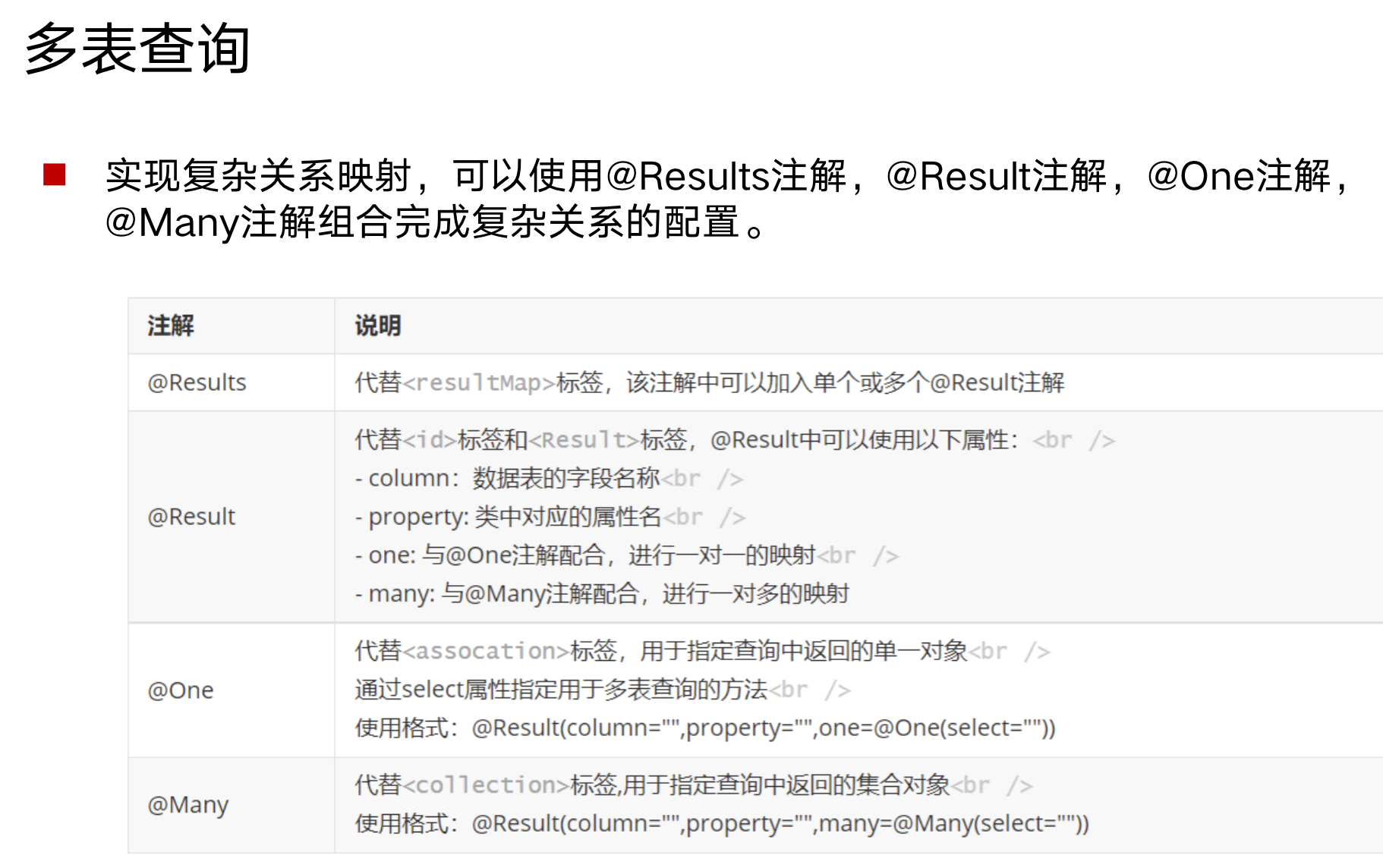

多表查询：

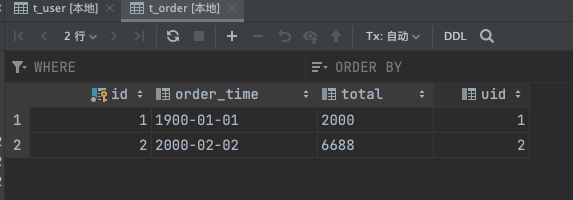

再新建一张 t_order表:

1
2
3
4
5
6
7
8
9
10
11
-- auto-generated definition
create table t_order
(
    id         int auto_increment
        primary key,
    order_time varchar(255) null,
    total      varchar(255) null,
    uid        int          null,
    constraint t_order_id_uindex
        unique (id)
);

@Result是给每一个字段赋值，前面是表里面的字段，后面是类里面的字段


条件查询：


QueryWrapper

AbstractWrapper

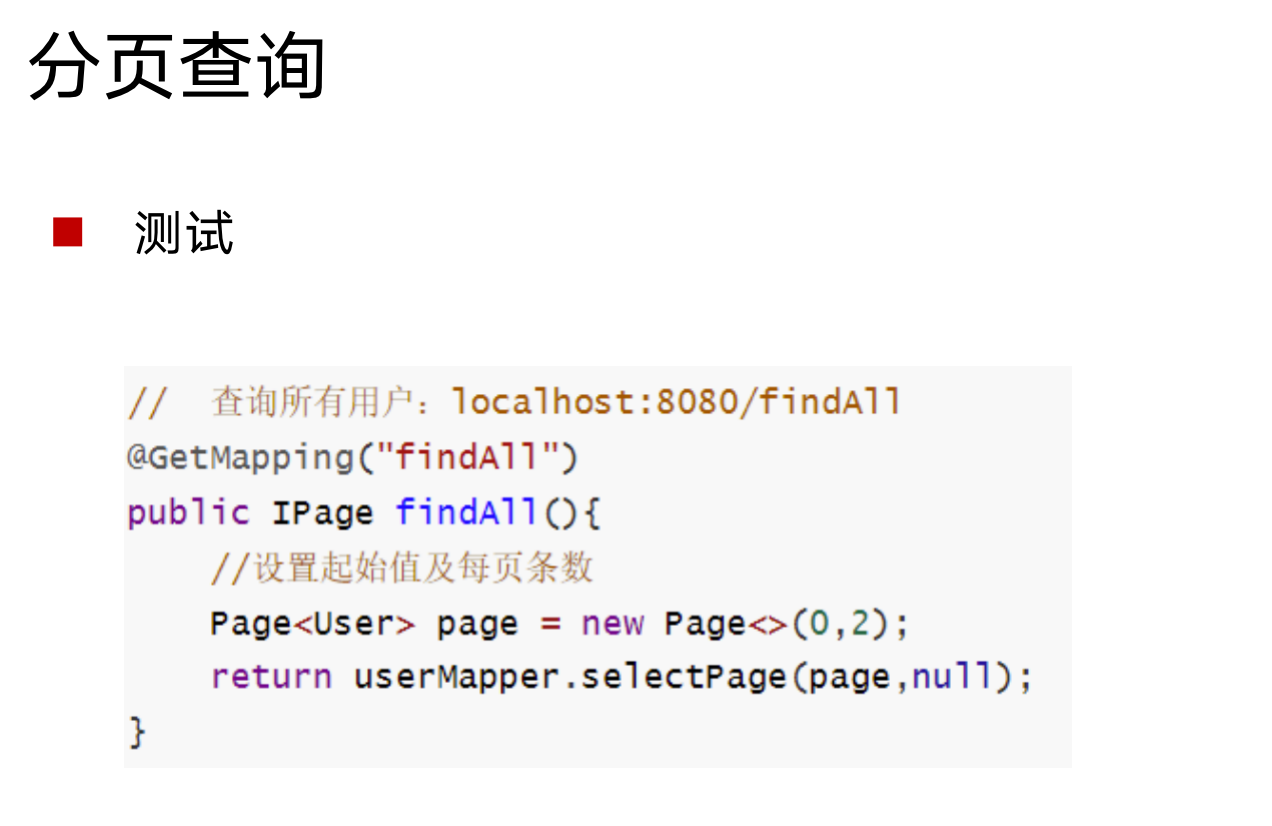

分页：


定义一个配置类，只需要告诉数据库类型

定义了一个分页拦截器

src/main/java/com/example/mpdemo/config/MyBatisPlusConfig.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
package com.example.mpdemo.config;

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class MyBatisPlusConfig {
    @Bean
    public MybatisPlusInterceptor paginationInterceptor() {
        MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
        PaginationInnerInterceptor paginationInterceptor = new PaginationInnerInterceptor(DbType.MYSQL);
        interceptor.addInnerInterceptor(paginationInterceptor);
        return interceptor;

    }
}
