Go中的内联优化

2021年05月22日留言

概念:

内联(inline),不是一个多么高大上的概念,虽然作用于编译阶段,但不难理解 ---- f1()调用f2(),编译器将f2的代码”拷贝”到f1(),从而避免调用f2(),这就是所谓的内联.

即将一个被调用f2()在调用处原地展开,替换成这个函数f2()的实现

(在前端html中,也有内联,但意思有所不同)

为了保证程序的执行高效与安全,现代编译器并不会将程序员的代码直接翻译成相应地机器码,它需要做一系列的检查与优化. Go编译器默认做了很多相关工作,例如未使用的引用包检查、未使用的声明变量检查、有效的括号检查、逃逸分析、内联优化、删除无用代码等。

栈分配内存会比堆分配高效得多, 我们自然希望对象能尽可能被分配在栈上. 在Go中,一个goroutine会有一个单独的栈,栈又会包含多个栈帧,栈帧是函数调用时在栈上为函数所分配的区域. 但其实函数调用是存在一些固定开销的, 如维护帧指针寄存器BP、栈溢出检测等. 因此,对于一些代码行比较少的函数,编译器倾向于将它们在编译期展开从而消除函数调用,这种行为就是内联。

内联的优点有二: 第一是它消除了函数调用本身的开销(函数调用有固定的开销,如栈和抢占检查); 第二是它使得编译器能更高效地执行其他的优化策略。

一般只有较简短的函数,进行内联优化才会性价比比较高~

(内联只对叶子函数有效,叶子函数指不调用其他func的函数)

想要禁止编译器内联优化很简单, 在函数定义前一行添加//go:noinline即可

效果:

➜   tree
.
├── go.mod
└── inlinebench_test.go

0 directories, 2 files

inlinebench_test.go:

package shuangInline

import (
	"testing"
)

func BenchmarkTest1(b *testing.B) {
	x, y := 1, 2
	b.ResetTimer()
	for i := 0; i < b.N; i++ {
		MaxNoinline(x, y)
	}
}

func BenchmarkTest2(b *testing.B) {
	x, y := 1, 2
	b.ResetTimer()
	for i := 0; i < b.N; i++ {
		MaxInline(x, y)
	}
}

//go:noinline
func MaxNoinline(a, b int) int {
	if a < b {
		return b
	}
	return a
}

func MaxInline(a, b int) int {
	if a < b {
		return b
	}
	return a
}

执行 go test --bench=. -benchmem -count=3,

goos: darwin
goarch: amd64
pkg: 1(go.mod里写的module名)
cpu: Intel(R) Core(TM) i7-8557U CPU @ 1.70GHz
BenchmarkTest1-8        834522109                1.349 ns/op           0 B/op          0 allocs/op
BenchmarkTest1-8        880187982                1.335 ns/op           0 B/op          0 allocs/op
BenchmarkTest1-8        881400147                1.339 ns/op           0 B/op          0 allocs/op
BenchmarkTest2-8        1000000000               0.2317 ns/op          0 B/op          0 allocs/op
BenchmarkTest2-8        1000000000               0.2349 ns/op          0 B/op          0 allocs/op
BenchmarkTest2-8        1000000000               0.2316 ns/op          0 B/op          0 allocs/op
PASS
ok      1       4.790s

(相关命令可参考不同写法的性能差异)

函数体内部的执行逻辑非常简单,此时的性能差异主要体现在函数调用的固定开销上,即内联与否. 显而易见, 同样的函数,不许内联用时是允许内联的6倍,差异非常巨大

选择:

内联优化效果显著,但编译器并不会对所以函数调用都进行内联. 因为内联其实就是将一个被调用函数f2()在调用处原地展开,替换成这个函数f2()的实现. 当该函数f2()被多次调用,就会被多次展开,这显然会增加编译后二进制文件的大小. 而如果不进行内联,则只需要保存一份函数体的代码,正常进行调用即可.

所以, 在空间上,一般来说内联优化会导致生成的可执行文件变大. 具体来说,编译器内联优化的选择策略是什么呢？

对于 shuang.go:

package main

func add(a, b int) int {

	return a + b
}

func iter(num int) int {

	res := 1
	for i := 1; i < num; i++ {
		res = add(res, i)
	}
	return res
}

func main() {
	n := 100
	_ = iter(n)
}

可通过执行 go build -gcflags="-m -m" shuang.go 命令查看编译器的优化策略:

对于 Go 1.11.x版本,

# command-line-arguments
./shuang.go:3:6: can inline add as: func(int, int) int { return a + b }
./shuang.go:8:6: cannot inline iter: unhandled op FOR
./shuang.go:12:12: inlining call to add func(int, int) int { return a + b }
./shuang.go:17:6: cannot inline main: function too complex: cost 90 exceeds budget 80
/var/folders/9z/kzqrt95n3wj9fq3189s2vvh80000gn/T/go-build729909214/b001/_gomod_.go:6:8: can inline init.0 as: func() { __debug_modinfo__ = "0w\xaf\f\x92t\b\x02A\xe1\xc1\a\xe6\xd6\x18\xe6path\tdashen\nmod\tdashen\t(devel)\t\n\xf92C1\x86\x18 r\x00\x82B\x10A\x16\xd8\xf2" }

编译器判断add函数可以被内联优化,并将add函数内联

iter函数由于存在循环语句并不能被内联: cannot inline iter: unhandled op FOR

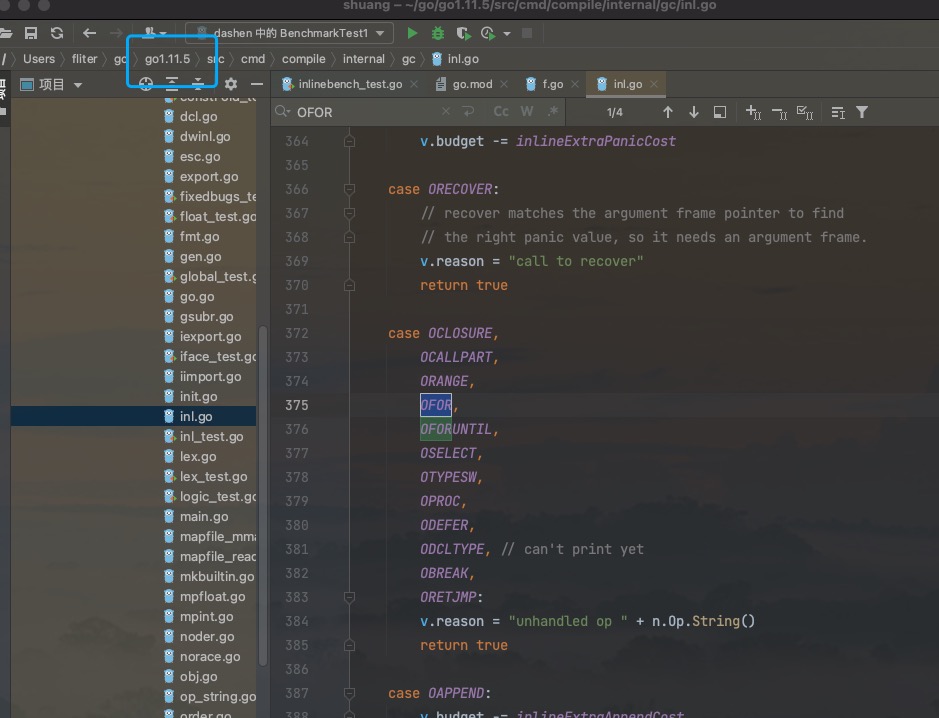

除了for循环,还有一些情况不会被内联, 如闭包/select/defer/go关键字所开启的新goroutine等, 详细可见src/cmd/compile/internal/gc/inl.go:

case OCLOSURE,
	OCALLPART,
	ORANGE,
	OFOR,
	OFORUNTIL,
	OSELECT,
	OTYPESW,
	OPROC,
	ODEFER,
	ODCLTYPE, // can't print yet
	OBREAK,
	ORETJMP:
	v.reason = "unhandled op " + n.Op.String()
	return true

main函数不能被内联优化,因为 超过了80个节点的代码量,就不再内联

cost 后面的数值代表抽象语法树AST的节点

还可通过 go build -gcflags="-m -m -m" shuang.go 查看更详细信息:

# command-line-arguments
./shuang.go:3:6: can inline add as: func(int, int) int { return a + b }
./shuang.go:8:6: cannot inline iter: unhandled op FOR
./shuang.go:12:12: inlining call to add func(int, int) int { return a + b }
./shuang.go:12:12: Before inlining:
.   CALLFUNC l(12) tc(1) int
.   .   NAME-main.add a(true) l(3) x(0) class(PFUNC) tc(1) used FUNC-func(int, int) int
.   CALLFUNC-list
.   .   NAME-main.res a(true) g(3) l(10) x(0) class(PAUTO) tc(1) assigned used int

.   .   NAME-main.i a(true) g(4) l(11) x(0) class(PAUTO) tc(1) assigned used int
substituting name
.   NAME-main.a a(true) g(2) l(3) x(0) class(PPARAM) tc(1) used int  ->
.   NAME-main.a a(true) l(3) x(0) class(PAUTO) tc(1) assigned used int
substituting name
.   NAME-main.b a(true) g(3) l(3) x(8) class(PPARAM) tc(1) used int  ->
.   NAME-main.b a(true) l(3) x(0) class(PAUTO) tc(1) assigned used int
./shuang.go:12:12: After inlining
.   INLCALL-init
.   .   DCL l(12)
.   .   .   NAME-main.a a(true) l(3) x(0) class(PAUTO) tc(1) assigned used int

.   .   DCL l(12)
.   .   .   NAME-main.b a(true) l(3) x(0) class(PAUTO) tc(1) assigned used int

.   .   DCL l(12)
.   .   .   NAME-main.~r2 a(true) l(3) x(0) class(PAUTO) tc(1) assigned used int

.   .   AS2 l(12) tc(1)
.   .   AS2-list
.   .   .   NAME-main.a a(true) l(3) x(0) class(PAUTO) tc(1) assigned used int

.   .   .   NAME-main.b a(true) l(3) x(0) class(PAUTO) tc(1) assigned used int
.   .   AS2-rlist
.   .   .   NAME-main.res a(true) g(3) l(10) x(0) class(PAUTO) tc(1) assigned used int

.   .   .   NAME-main.i a(true) g(4) l(11) x(0) class(PAUTO) tc(1) assigned used int

.   .   AS l(12) tc(1)
.   .   .   NAME-main.~r2 a(true) l(3) x(0) class(PAUTO) tc(1) assigned used int
.   INLCALL l(12) tc(1) int
.   INLCALL-rlist
.   .   NAME-main.~r2 a(true) l(3) x(0) class(PAUTO) tc(1) assigned used int
.   INLCALL-body
.   .   GOTO-init
.   .   .   AS2 l(12) tc(1)
.   .   .   AS2-list
.   .   .   .   NAME-main.~r2 a(true) l(3) x(0) class(PAUTO) tc(1) assigned used int
.   .   .   AS2-rlist
.   .   .   .   ADD l(5) tc(1) int
.   .   .   .   .   NAME-main.a a(true) l(3) x(0) class(PAUTO) tc(1) assigned used int
.   .   .   .   .   NAME-main.b a(true) l(3) x(0) class(PAUTO) tc(1) assigned used int
.   .   GOTO l(12) tc(1)
.   .   .   NAME-main..i0 a(true) l(12) x(0)

.   .   LABEL l(12) tc(1)
.   .   .   NAME-main..i0 a(true) l(12) x(0)

./shuang.go:17:6: cannot inline main: function too complex: cost 90 exceeds budget 80
/var/folders/9z/kzqrt95n3wj9fq3189s2vvh80000gn/T/go-build416805477/b001/_gomod_.go:6:8: can inline init.0 as: func() { __debug_modinfo__ = "0w\xaf\f\x92t\b\x02A\xe1\xc1\a\xe6\xd6\x18\xe6path\tdashen\nmod\tdashen\t(devel)\t\n\xf92C1\x86\x18 r\x00\x82B\x10A\x16\xd8\xf2" }
./shuang.go:5:11:[1] add esc: a
./shuang.go:5:11:[1] add esc: b
./shuang.go:5:11:[1] add esc: a + b
./shuang.go:5:2:[1] add esc: return a + b
./shuang.go:5:2:[1] add escassign: ~r2( a(true) g(1) l(3) x(16) class(PPARAMOUT))[NAME] = a + b( l(5) tc(1))[+]
./shuang.go:5:11:[1] add escassign: ~r2( a(true) g(1) l(3) x(16) class(PPARAMOUT))[NAME] = a( a(true) g(2) l(3) x(0) class(PPARAM) ld(1) tc(1) used)[NAME]
./shuang.go:5:11:[1] add escassign: ~r2( a(true) g(1) l(3) x(16) class(PPARAMOUT))[NAME] = b( a(true) g(3) l(3) x(8) class(PPARAM) ld(1) tc(1) used)[NAME]
./shuang.go:10:2:[1] iter esc: res
./shuang.go:10:2:[1] iter esc: var res int
./shuang.go:10:6:[1] iter esc: res
./shuang.go:10:9:[1] iter esc: 1
./shuang.go:10:6:[1] iter esc: res := 1
./shuang.go:10:6:[1] iter escassign: res( a(true) g(3) l(10) x(0) class(PAUTO) ld(1) tc(1) assigned used)[NAME] = 1( l(10) tc(1))[LITERAL]
./shuang.go:11:6:[1] iter esc: i
./shuang.go:11:6:[1] iter esc: var i int
./shuang.go:11:8:[1] iter esc: i
./shuang.go:11:11:[1] iter esc: 1
./shuang.go:11:8:[1] iter esc: i := 1
./shuang.go:11:8:[1] iter escassign: i( a(true) g(4) l(11) x(0) class(PAUTO) ld(1) tc(1) assigned used)[NAME] = 1( l(11) tc(1))[LITERAL]
./shuang.go:11:16:[2] iter esc: i
./shuang.go:11:16:[2] iter esc: num
./shuang.go:11:16:[2] iter esc: i < num
./shuang.go:11:24:[2] iter esc: i
./shuang.go:11:23:[2] iter esc: 1
./shuang.go:11:24:[2] iter esc: i++
./shuang.go:11:24:[2] iter escassign: i( a(true) g(4) l(11) x(0) class(PAUTO) ld(1) tc(1) assigned used)[NAME] = 1( l(11) tc(1))[LITERAL]
./shuang.go:12:7:[2] iter esc: res
./shuang.go:12:12:[2] iter esc: a
./shuang.go:12:12:[2] iter esc: var a int
./shuang.go:12:12:[2] iter esc: b
./shuang.go:12:12:[2] iter esc: var b int
./shuang.go:12:12:[2] iter esc: ~r2
./shuang.go:12:12:[2] iter esc: var ~r2 int
./shuang.go:12:12:[2] iter esc: a
./shuang.go:12:12:[2] iter esc: b
./shuang.go:12:12:[2] iter esc: res
./shuang.go:12:12:[2] iter esc: i
./shuang.go:12:12:[2] iter esc: a, b = res, i
./shuang.go:12:12:[2] iter escassign: a( a(true) l(3) x(0) class(PAUTO) ld(2) tc(1) assigned used)[NAME] = res( a(true) g(3) l(10) x(0) class(PAUTO) ld(1) tc(1) assigned used)[NAME]
./shuang.go:12:12:[2] iter escassign: b( a(true) l(3) x(0) class(PAUTO) ld(2) tc(1) assigned used)[NAME] = i( a(true) g(4) l(11) x(0) class(PAUTO) ld(1) tc(1) assigned used)[NAME]
./shuang.go:12:12:[2] iter esc: ~r2
./shuang.go:12:12:[2] iter esc: ~r2 = <N>
./shuang.go:12:12:[2] iter esc: ~r2
./shuang.go:12:12:[2] iter esc: a
./shuang.go:12:12:[2] iter esc: b
./shuang.go:12:12:[2] iter esc: a + b
./shuang.go:12:12:[2] iter esc: ~r2 = a + b
./shuang.go:12:12:[2] iter escassign: ~r2( a(true) l(3) x(0) class(PAUTO) ld(2) tc(1) assigned used)[NAME] = a + b( l(5) tc(1))[+]
./shuang.go:12:12:[2] iter escassign: ~r2( a(true) l(3) x(0) class(PAUTO) ld(2) tc(1) assigned used)[NAME] = a( a(true) l(3) x(0) class(PAUTO) ld(2) tc(1) assigned used)[NAME]
./shuang.go:12:12:[2] iter escassign: ~r2( a(true) l(3) x(0) class(PAUTO) ld(2) tc(1) assigned used)[NAME] = b( a(true) l(3) x(0) class(PAUTO) ld(2) tc(1) assigned used)[NAME]
./shuang.go:12:12:[2] iter esc: .i0
./shuang.go:12:12:[2] iter esc: goto .i0
./shuang.go:12:12:[2] iter esc: .i0
./shuang.go:12:12:[2] iter esc: .i0:
./shuang.go:12:12:.i0:  non-looping label
./shuang.go:12:7:[2] iter esc: ~r2
./shuang.go:12:7:[2] iter esc: int(~r2)
./shuang.go:12:7:[2] iter escassign: int(~r2)( l(12) tc(1) hascall)[CONVNOP] = ~r2( a(true) l(3) x(0) class(PAUTO) ld(2) tc(1) assigned used)[NAME]
./shuang.go:12:7:[2] iter esc: res = int(~r2)
./shuang.go:12:7:[2] iter escassign: res( a(true) g(3) l(10) x(0) class(PAUTO) ld(1) tc(1) assigned used)[NAME] = int(~r2)( l(12) tc(1) hascall)[CONVNOP]
./shuang.go:12:7:[2] iter escassign: res( a(true) g(3) l(10) x(0) class(PAUTO) ld(1) tc(1) assigned used)[NAME] = ~r2( a(true) l(3) x(0) class(PAUTO) ld(2) tc(1) assigned used)[NAME]
./shuang.go:11:2:[1] iter esc: for loop
./shuang.go:14:2:[1] iter esc: res
./shuang.go:14:2:[1] iter esc: return res
./shuang.go:14:2:[1] iter escassign: ~r1( a(true) g(1) l(8) x(8) class(PPARAMOUT))[NAME] = res( a(true) g(3) l(10) x(0) class(PAUTO) ld(1) tc(1) assigned used)[NAME]
./shuang.go:18:2:[1] main esc: n
./shuang.go:18:2:[1] main esc: var n int
./shuang.go:18:4:[1] main esc: n
./shuang.go:18:7:[1] main esc: 10
./shuang.go:18:4:[1] main esc: n := 10
./shuang.go:18:4:[1] main escassign: n( a(true) g(1) l(18) x(0) class(PAUTO) ld(1) tc(1) used)[NAME] = 10( l(18) tc(1))[LITERAL]
./shuang.go:19:4:[1] main esc: _
./shuang.go:19:10:[1] main esc: iter
./shuang.go:19:10:[1] main esc: n
./shuang.go:19:10:[1] main esc: iter(n)
./shuang.go:19:4:[1] main esc: _ = iter(n)
/var/folders/9z/kzqrt95n3wj9fq3189s2vvh80000gn/T/go-build416805477/b001/_gomod_.go:7:22:[1] init.0 esc: __debug_modinfo__
/var/folders/9z/kzqrt95n3wj9fq3189s2vvh80000gn/T/go-build416805477/b001/_gomod_.go:7:24:[1] init.0 esc: "0w\xaf\f\x92t\b\x02A\xe1\xc1\a\xe6\xd6\x18\xe6path\tdashen\nmod\tdashen\t(devel)\t\n\xf92C1\x86\x18 r\x00\x82B\x10A\x16\xd8\xf2"
/var/folders/9z/kzqrt95n3wj9fq3189s2vvh80000gn/T/go-build416805477/b001/_gomod_.go:7:22:[1] init.0 esc: __debug_modinfo__ = "0w\xaf\f\x92t\b\x02A\xe1\xc1\a\xe6\xd6\x18\xe6path\tdashen\nmod\tdashen\t(devel)\t\n\xf92C1\x86\x18 r\x00\x82B\x10A\x16\xd8\xf2"
/var/folders/9z/kzqrt95n3wj9fq3189s2vvh80000gn/T/go-build416805477/b001/_gomod_.go:7:22:[1] init.0 escassign: __debug_modinfo__( a(true) l(5) x(0) class(PEXTERN) tc(1) assigned)[NAME] = "0w\xaf\f\x92t\b\x02A\xe1\xc1\a\xe6\xd6\x18\xe6path\tdashen\nmod\tdashen\t(devel)\t\n\xf92C1\x86\x18 r\x00\x82B\x10A\x16\xd8\xf2"( l(7) tc(1))[LITERAL]

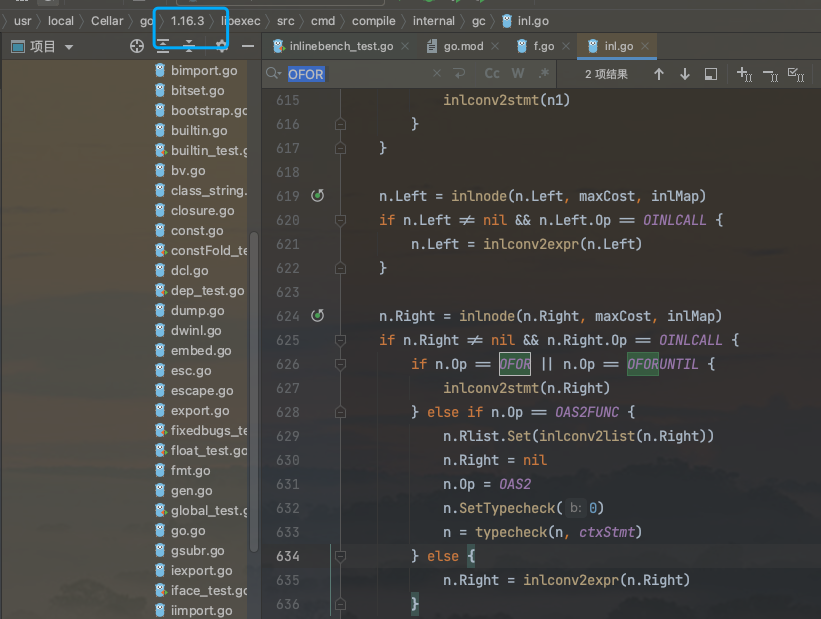

对于 Go 1.16.x版本, 情况有所不同

# command-line-arguments
./shuang.go:3:6: can inline add with cost 4 as: func(int, int) int { return a + b }
./shuang.go:8:6: can inline iter with cost 29 as: func(int) int { res := 1; for loop; return res }
./shuang.go:12:12: inlining call to add func(int, int) int { return a + b }
./shuang.go:17:6: can inline main with cost 39 as: func() { n := 100; _ = iter(n) }
./shuang.go:19:10: inlining call to iter func(int) int { res := 1; for loop; return res }
./shuang.go:19:10: inlining call to add func(int, int) int { return a + b }

add,iter,main均可内联.

这应该是某次版本升级带来的优化

内联表:

内联会将函数调用的过程抹掉,这会引入一个新的问题：代码的堆栈信息还能否保证?

举个例子,如果上面的add方法发生了panic,内联之后的程序,还能否准确的打印出堆栈信息？

package main

func sub(a, b int) {
	a = a - b
	panic("panic information")
}

func max(a, b int) int {
	if a < b {
		sub(a, b)
	}
	return a
}

func main() {
	x, y := 1, 2
	_ = max(x, y)
}

在 Go 1.16下,这段代码 go build -gcflags="-m -m" cui.go 结果为:

# command-line-arguments
./cui.go:3:6: can inline sub with cost 8 as: func(int, int) { a = a - b; panic("panic information") }
./cui.go:8:6: can inline max with cost 18 as: func(int, int) int { if a < b { sub(a, b) }; return a }
./cui.go:10:6: inlining call to sub func(int, int) { a = a - b; panic("panic information") }
./cui.go:15:6: can inline main with cost 33 as: func() { x, y := 1, 2; _ = max(x, y) }
./cui.go:17:9: inlining call to max func(int, int) int { if a < b { sub(a, b) }; return a }
./cui.go:17:9: inlining call to sub func(int, int) { a = a - b; panic("panic information") }

可知 max函数被内联,执行程序 go run cui.go

panic: panic information

goroutine 1 [running]:
main.sub(...)
        /Users/fliter/go/src/shuang/lab/cui.go:5
main.max(...)
        /Users/fliter/go/src/shuang/lab/cui.go:10
main.main()
        /Users/fliter/go/src/shuang/lab/cui.go:17 +0x3a
exit status 2

panic依然输出了正确的程序堆栈信息,包括源文件位置和行号信息

这是由于Go内部会为每个存在内联优化的goroutine维持一个内联树（inlining tree）,

该树可通过 `go build -gcflags="-d pctab=pctoinline" cui.go` 命令查看:

# command-line-arguments
funcpctab "".sub [valfunc=pctoinline]
     0     -1 00000 (/Users/fliter/go/src/shuang/lab/cui.go:3)  TEXT    "".sub(SB), ABIInternal, $24-16
     0        00000 (/Users/fliter/go/src/shuang/lab/cui.go:3)  TEXT    "".sub(SB), ABIInternal, $24-16
     0     -1 00000 (/Users/fliter/go/src/shuang/lab/cui.go:3)  MOVQ    (TLS), CX
     9        00009 (/Users/fliter/go/src/shuang/lab/cui.go:3)  CMPQ    SP, 16(CX)
     d        00013 (/Users/fliter/go/src/shuang/lab/cui.go:3)  PCDATA  $0, $-2
     d        00013 (/Users/fliter/go/src/shuang/lab/cui.go:3)  JLS     58
     f        00015 (/Users/fliter/go/src/shuang/lab/cui.go:3)  PCDATA  $0, $-1
     f        00015 (/Users/fliter/go/src/shuang/lab/cui.go:3)  SUBQ    $24, SP
    13        00019 (/Users/fliter/go/src/shuang/lab/cui.go:3)  MOVQ    BP, 16(SP)
    18        00024 (/Users/fliter/go/src/shuang/lab/cui.go:3)  LEAQ    16(SP), BP
    1d        00029 (/Users/fliter/go/src/shuang/lab/cui.go:3)  FUNCDATA        $0, gclocals·33cdeccccebe80329f1fdbee7f5874cb(SB)
    1d        00029 (/Users/fliter/go/src/shuang/lab/cui.go:3)  FUNCDATA        $1, gclocals·33cdeccccebe80329f1fdbee7f5874cb(SB)
    1d        00029 (/Users/fliter/go/src/shuang/lab/cui.go:5)  LEAQ    type.string(SB), AX
    24        00036 (/Users/fliter/go/src/shuang/lab/cui.go:5)  MOVQ    AX, (SP)
    28        00040 (/Users/fliter/go/src/shuang/lab/cui.go:5)  LEAQ    ""..stmp_0(SB), AX
    2f        00047 (/Users/fliter/go/src/shuang/lab/cui.go:5)  MOVQ    AX, 8(SP)
    34        00052 (/Users/fliter/go/src/shuang/lab/cui.go:5)  PCDATA  $1, $0
    34        00052 (/Users/fliter/go/src/shuang/lab/cui.go:5)  CALL    runtime.gopanic(SB)
    39        00057 (/Users/fliter/go/src/shuang/lab/cui.go:5)  XCHGL   AX, AX
    3a        00058 (/Users/fliter/go/src/shuang/lab/cui.go:5)  NOP
    3a        00058 (/Users/fliter/go/src/shuang/lab/cui.go:3)  PCDATA  $1, $-1
    3a        00058 (/Users/fliter/go/src/shuang/lab/cui.go:3)  PCDATA  $0, $-2
    3a        00058 (/Users/fliter/go/src/shuang/lab/cui.go:3)  CALL    runtime.morestack_noctxt(SB)
    3f        00063 (/Users/fliter/go/src/shuang/lab/cui.go:3)  PCDATA  $0, $-1
    3f        00063 (/Users/fliter/go/src/shuang/lab/cui.go:3)  NOP
    40        00064 (/Users/fliter/go/src/shuang/lab/cui.go:3)  JMP     0
    42 done
wrote 3 bytes to 0xc00009e500
 00 42 00
funcpctab "".max [valfunc=pctoinline]
     0     -1 00000 (/Users/fliter/go/src/shuang/lab/cui.go:8)  TEXT    "".max(SB), ABIInternal, $24-24
     0        00000 (/Users/fliter/go/src/shuang/lab/cui.go:8)  TEXT    "".max(SB), ABIInternal, $24-24
     0     -1 00000 (/Users/fliter/go/src/shuang/lab/cui.go:8)  MOVQ    (TLS), CX
     9        00009 (/Users/fliter/go/src/shuang/lab/cui.go:8)  CMPQ    SP, 16(CX)
     d        00013 (/Users/fliter/go/src/shuang/lab/cui.go:8)  PCDATA  $0, $-2
     d        00013 (/Users/fliter/go/src/shuang/lab/cui.go:8)  JLS     89
     f        00015 (/Users/fliter/go/src/shuang/lab/cui.go:8)  PCDATA  $0, $-1
     f        00015 (/Users/fliter/go/src/shuang/lab/cui.go:8)  SUBQ    $24, SP
    13        00019 (/Users/fliter/go/src/shuang/lab/cui.go:8)  MOVQ    BP, 16(SP)
    18        00024 (/Users/fliter/go/src/shuang/lab/cui.go:8)  LEAQ    16(SP), BP
    1d        00029 (/Users/fliter/go/src/shuang/lab/cui.go:8)  FUNCDATA        $0, gclocals·33cdeccccebe80329f1fdbee7f5874cb(SB)
    1d        00029 (/Users/fliter/go/src/shuang/lab/cui.go:8)  FUNCDATA        $1, gclocals·33cdeccccebe80329f1fdbee7f5874cb(SB)
    1d        00029 (/Users/fliter/go/src/shuang/lab/cui.go:9)  MOVQ    "".a+32(SP), AX
    22        00034 (/Users/fliter/go/src/shuang/lab/cui.go:9)  MOVQ    "".b+40(SP), CX
    27        00039 (/Users/fliter/go/src/shuang/lab/cui.go:9)  CMPQ    AX, CX
    2a        00042 (/Users/fliter/go/src/shuang/lab/cui.go:9)  JLT     59
    2c        00044 (/Users/fliter/go/src/shuang/lab/cui.go:12) MOVQ    AX, "".~r2+48(SP)
    31        00049 (/Users/fliter/go/src/shuang/lab/cui.go:12) MOVQ    16(SP), BP
    36        00054 (/Users/fliter/go/src/shuang/lab/cui.go:12) ADDQ    $24, SP
    3a        00058 (/Users/fliter/go/src/shuang/lab/cui.go:12) RET
    3b        00059 (/Users/fliter/go/src/shuang/lab/cui.go:10) XCHGL   AX, AX
    3c      0 00060 (/Users/fliter/go/src/shuang/lab/cui.go:10) LEAQ    type.string(SB), AX
    43        00067 (/Users/fliter/go/src/shuang/lab/cui.go:10) MOVQ    AX, (SP)
    47        00071 (/Users/fliter/go/src/shuang/lab/cui.go:10) LEAQ    ""..stmp_1(SB), AX
    4e        00078 (/Users/fliter/go/src/shuang/lab/cui.go:10) MOVQ    AX, 8(SP)
    53        00083 (/Users/fliter/go/src/shuang/lab/cui.go:10) PCDATA  $1, $0
    53        00083 (/Users/fliter/go/src/shuang/lab/cui.go:10) CALL    runtime.gopanic(SB)
    58        00088 (/Users/fliter/go/src/shuang/lab/cui.go:10) XCHGL   AX, AX
    59        00089 (/Users/fliter/go/src/shuang/lab/cui.go:10) NOP
    59        00089 (/Users/fliter/go/src/shuang/lab/cui.go:8)  PCDATA  $1, $-1
    59        00089 (/Users/fliter/go/src/shuang/lab/cui.go:8)  PCDATA  $0, $-2
    59     -1 00089 (/Users/fliter/go/src/shuang/lab/cui.go:8)  CALL    runtime.morestack_noctxt(SB)
    5e        00094 (/Users/fliter/go/src/shuang/lab/cui.go:8)  PCDATA  $0, $-1
    5e        00094 (/Users/fliter/go/src/shuang/lab/cui.go:8)  NOP
    60        00096 (/Users/fliter/go/src/shuang/lab/cui.go:8)  JMP     0
    62 done
wrote 7 bytes to 0xc0006a2270
 00 3c 02 1d 01 09 00
-- inlining tree for "".max:
0 | -1 | "".sub (/Users/fliter/go/src/shuang/lab/cui.go:10:6) pc=59
--
funcpctab "".main [valfunc=pctoinline]
     0     -1 00000 (/Users/fliter/go/src/shuang/lab/cui.go:15) TEXT    "".main(SB), ABIInternal, $24-0
     0        00000 (/Users/fliter/go/src/shuang/lab/cui.go:15) TEXT    "".main(SB), ABIInternal, $24-0
     0     -1 00000 (/Users/fliter/go/src/shuang/lab/cui.go:15) MOVQ    (TLS), CX
     9        00009 (/Users/fliter/go/src/shuang/lab/cui.go:15) CMPQ    SP, 16(CX)
     d        00013 (/Users/fliter/go/src/shuang/lab/cui.go:15) PCDATA  $0, $-2
     d        00013 (/Users/fliter/go/src/shuang/lab/cui.go:15) JLS     64
     f        00015 (/Users/fliter/go/src/shuang/lab/cui.go:15) PCDATA  $0, $-1
     f        00015 (/Users/fliter/go/src/shuang/lab/cui.go:15) SUBQ    $24, SP
    13        00019 (/Users/fliter/go/src/shuang/lab/cui.go:15) MOVQ    BP, 16(SP)
    18        00024 (/Users/fliter/go/src/shuang/lab/cui.go:15) LEAQ    16(SP), BP
    1d        00029 (/Users/fliter/go/src/shuang/lab/cui.go:15) FUNCDATA        $0, gclocals·33cdeccccebe80329f1fdbee7f5874cb(SB)
    1d        00029 (/Users/fliter/go/src/shuang/lab/cui.go:15) FUNCDATA        $1, gclocals·33cdeccccebe80329f1fdbee7f5874cb(SB)
    1d        00029 (<unknown line number>)     NOP
    1d      0 00029 (/Users/fliter/go/src/shuang/lab/cui.go:17) XCHGL   AX, AX
    1e     -1 00030 (/Users/fliter/go/src/shuang/lab/cui.go:17) LEAQ    type.string(SB), AX
    25      1 00037 (/Users/fliter/go/src/shuang/lab/cui.go:17) MOVQ    AX, (SP)
    29        00041 (/Users/fliter/go/src/shuang/lab/cui.go:17) LEAQ    ""..stmp_2(SB), AX
    30        00048 (/Users/fliter/go/src/shuang/lab/cui.go:17) MOVQ    AX, 8(SP)
    35        00053 (/Users/fliter/go/src/shuang/lab/cui.go:17) PCDATA  $1, $0
    35        00053 (/Users/fliter/go/src/shuang/lab/cui.go:17) CALL    runtime.gopanic(SB)
    3a        00058 (/Users/fliter/go/src/shuang/lab/cui.go:17) XCHGL   AX, AX
    3b        00059 (/Users/fliter/go/src/shuang/lab/cui.go:17) NOP
    3b        00059 (/Users/fliter/go/src/shuang/lab/cui.go:15) PCDATA  $1, $-1
    3b        00059 (/Users/fliter/go/src/shuang/lab/cui.go:15) PCDATA  $0, $-2
    3b     -1 00059 (/Users/fliter/go/src/shuang/lab/cui.go:15) NOP
    40        00064 (/Users/fliter/go/src/shuang/lab/cui.go:15) CALL    runtime.morestack_noctxt(SB)
    45        00069 (/Users/fliter/go/src/shuang/lab/cui.go:15) PCDATA  $0, $-1
    45        00069 (/Users/fliter/go/src/shuang/lab/cui.go:15) JMP     0
    47 done
wrote 11 bytes to 0xc0004a0260
 00 1d 02 01 01 07 04 16 03 0c 00
-- inlining tree for "".main:
0 | -1 | "".max (/Users/fliter/go/src/shuang/lab/cui.go:17:9) pc=30
1 | 0 | "".sub (/Users/fliter/go/src/shuang/lab/cui.go:10:6) pc=29
--

由此便可以得到一张映射表,这张表被嵌入到了二进制文件中,在运行时可以得到准确的堆栈信息

控制:

Go程序编译时,默认将进行内联优化. 可通过-gcflags="-l" (或 -gcflags=-l)选项全局禁用内联;与一个-l禁用内联相反,如果传递两个或两个以上的-l则会启用内联,并用更为激进的内联策略.

-gcflags=-l，禁用内联。什么都不做，常规的内联
-gcflags=’-l -l’ 内联级别2，更积极，可能更快，可能会制作更大的二进制文件。
-gcflags=’-l -l -l’ 内联级别3，再次更加激进，二进制文件肯定更大，也许更快，但也许会有 bug。
-gcflags=-l=4 (4个 -l) 在 Go 1.11 中将支持实验性的中间栈内联优化。

如果不想全局范围内禁止优化,而只针对某函数,则可以在函数定义上方添加//go:noinline 编译指令,来阻止编译器内联该函数

清澄秋爽

苹果树下的思索者书写是对思维的缓存

Go中的内联优化

概念:

效果:

选择:

内联表:

控制:

文章目录
